20

Mounting the Fascia

Doors

• Position the appliance within the unit.

Ensure that there is a gap of 3 to 4mm

between the non-hinged side and the

cabinet wall.

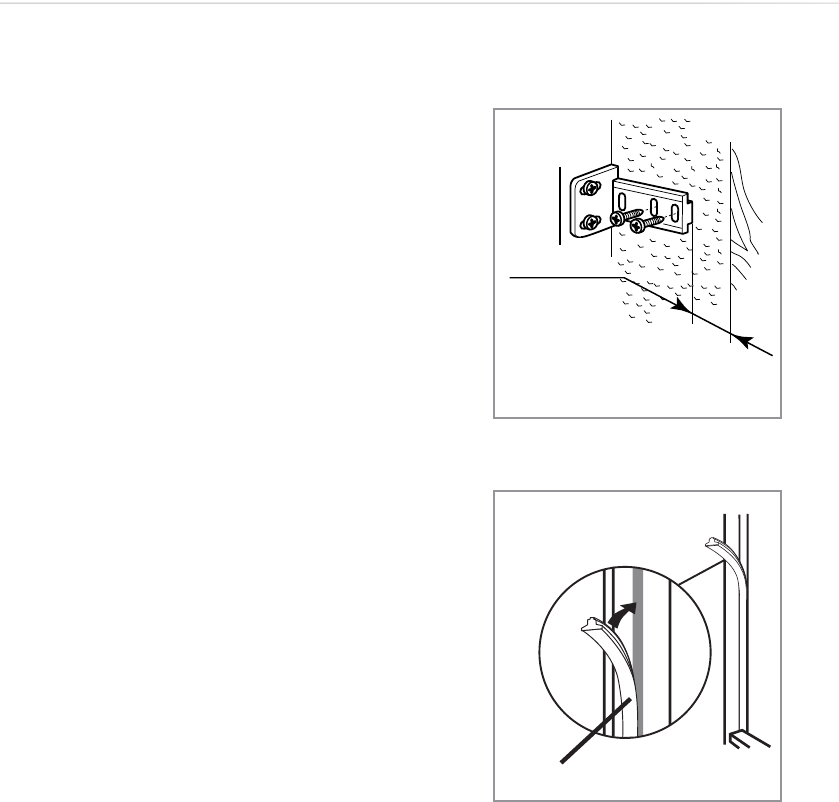

• Locate the slider in the bracket and

ﬁx the slider to the fascia door 20 to

22mm from the edge of the fascia

as shown in ﬁgure 8, ensuring that

the slider is positioned centrally

and horizontally within the bracket.

Tighten securely by hand.

• Fill the gap on the non-hinged side

with the seal strip provided, as shown

in ﬁgure 9.

20 mm

door gasket

x4

Fig. 8

Fig. 9
